Shelving and Racking
Steel shelving and racking supplied from Turkey and configured to your load and layout, from warehouse pallet racking to supermarket gondola systems. We handle the quotation, the configuration, and the export so your storage arrives ready to assemble.
Send us your floor plan and what you store, and we come back with a layout and a quote.

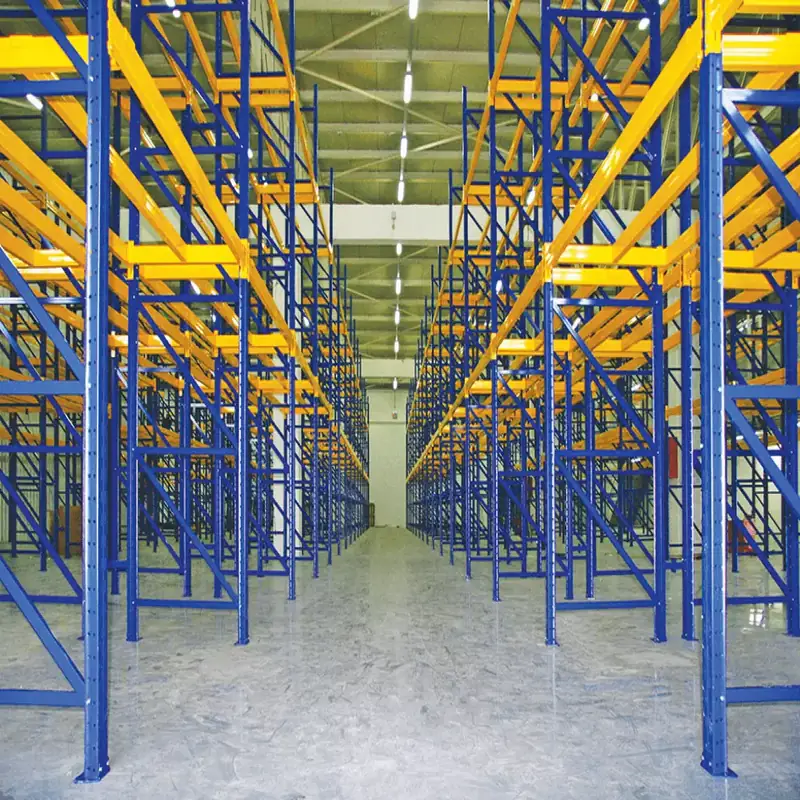

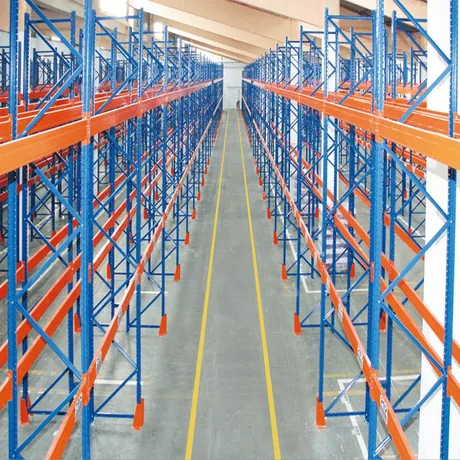

Heavy duty pallet racking
Racking for palletized goods with load values up to 4000 kg UDL per level depending on beam and upright configuration. Frames anchor to the floor with steel dowels and foot plates, with safety locking pins on the beams and options from drive-in rails to back to back connectors.
Medium duty shelving
Hand-loaded shelving for spare parts, archives, and stockrooms, with load values up to 800 kg UDL per level depending on configuration. Frame heights up to 6000 mm, shelf depths from 300 to 900 mm, and beam lengths from 900 to 1800 mm, with adjustable shelf levels. Assembly uses bolt and nut connections on the upright diagonals.
Supermarket shelves
Modular retail shelving supplied as a system, so a store line stays consistent from the perimeter through the aisles.
The bays here are the arrangements stores and warehouses ask for most. Upright, beam, and shelf sizes are set to your load and your floor, so send us the layout and the weight per level and we will configure it.

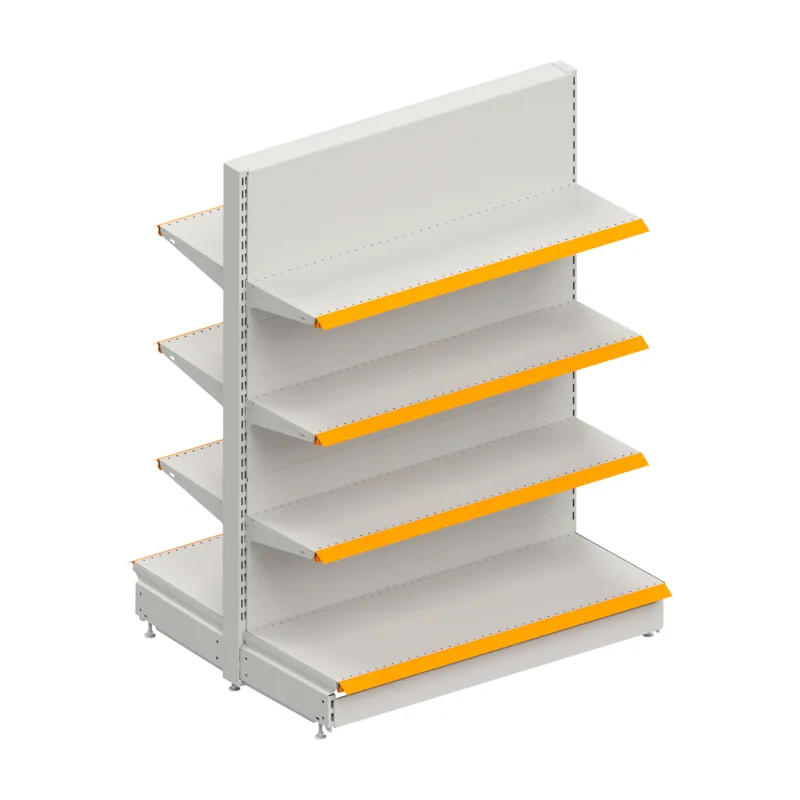

Gondola units
Double sided center-store shelving on a modular upright system, with shelf levels adjusted to your products.

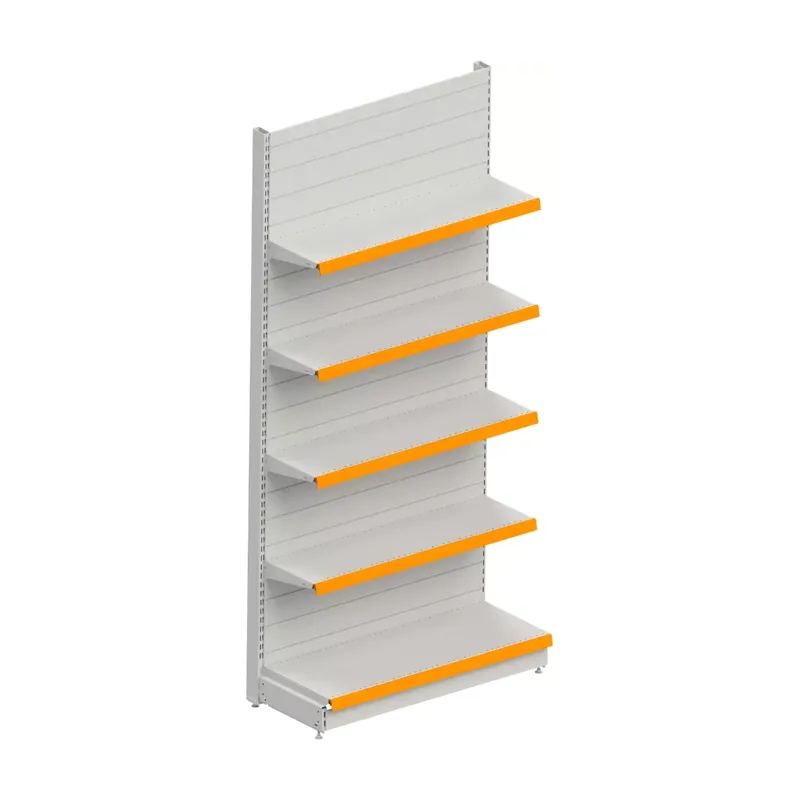

Wall units
Single sided perimeter shelving, with canopy topped options for a structured look.
Corner units
Internal and external corner modules that keep the shelving line continuous.

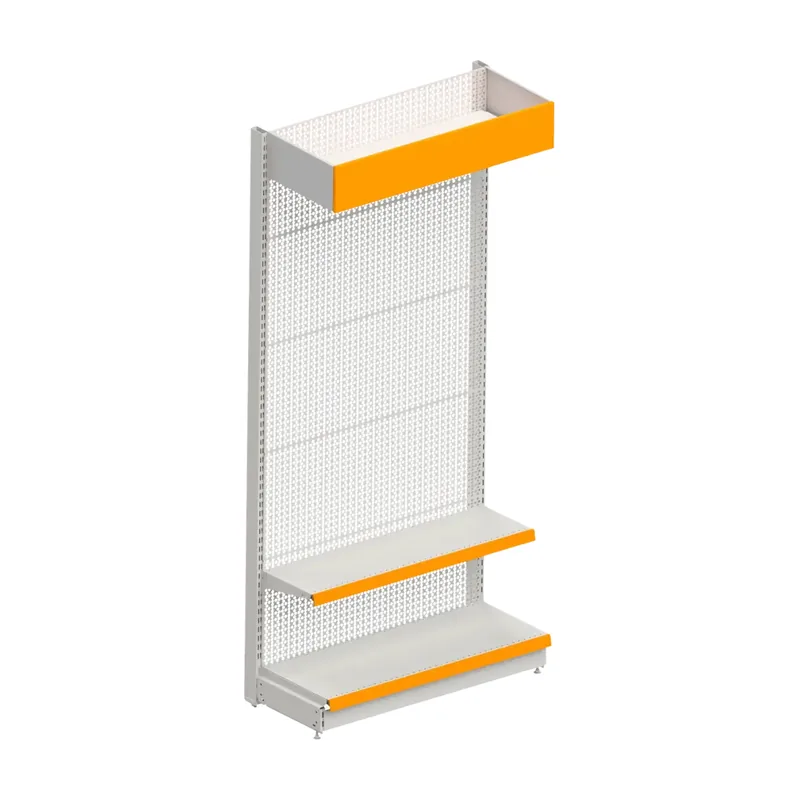

Perforated wall panels
Hook-based display for hardware and accessories.

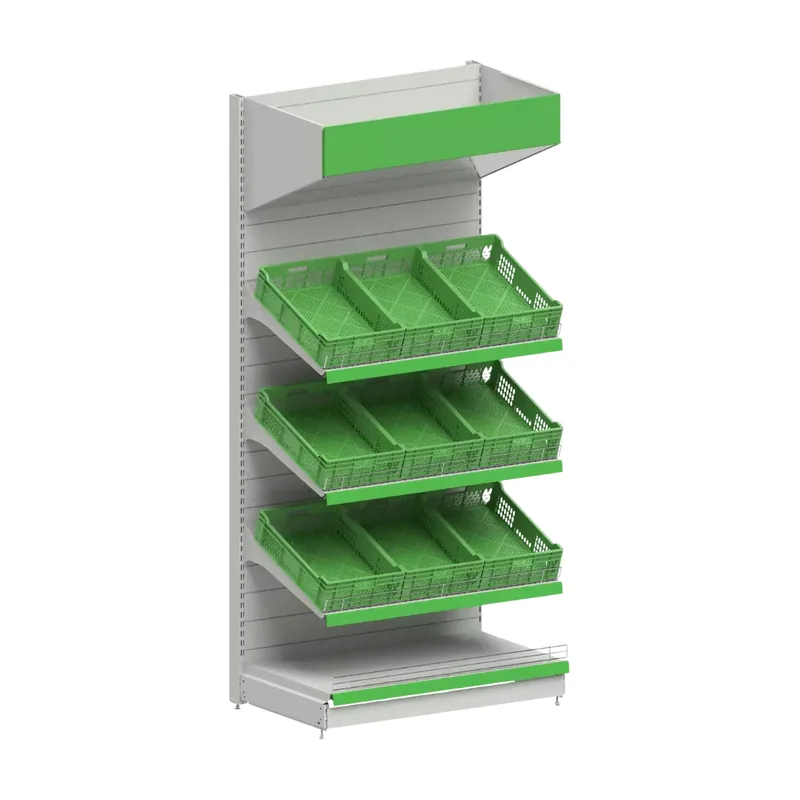

Produce displays
Tilted levels and crates for fruit and vegetable sections.
Specifications
| Pallet racking load | Up to 4000 kg UDL per level, depending on configuration |
|---|---|
| Medium duty load | Up to 800 kg UDL per level, depending on configuration |
| Supermarket shelf load | 80 to 100 kg per shelf level, depending on configuration |
| Medium duty sizes | Heights up to 6000 mm, depths 300 to 900 mm, beams 900 to 1800 mm |
| Gondola and wall unit widths | 550, 700, 900, 1000, 1250, and 1330 mm |
| Gondola and wall unit depths | 300, 400, 500, 600, and 700 mm |
| Gondola and wall unit heights | Standard 1400, 1820, and 2240 mm, with other heights built from 420 mm and 210 mm back panel modules on a 145 mm base |
| Uprights | 30 × 70 mm standard, 30 × 90 mm for gondolas at 2240 mm, taller wall units, and heavier loads |
| Steel | S235 and S355 grades to suit the load and configuration |
| Galvanized option | Uprights and steel shelf panels in hot dip galvanized substrate (DX51D+Z, Z100) or powder coated |
| Finish | Powder coated, around 70 micron, using a Qualicoat approved coating |
| Documentation | Material and coating documentation available on request |
| Colors | Supermarket units in RAL 9016, RAL 9005, and RAL 7016, pallet racking beams in RAL 2008 with uprights in RAL 5010 at 50 gloss or pre-galvanized, other RAL colors on request |
| Packing | Knock down on pallets, packed for sea or road, uprights supplied flat with one assembled sample on request or fully assembled on request |
| Origin | Made in Turkey |
Load values are supplier catalog figures and they depend on the beam, upright, and level configuration you order. We confirm the values for your layout with a structural calculation, and the calculation report is available on request.
Supplied to your project
Each system is put together around the room it goes into, so the floor plan and the load come first and the part list follows from them.
- Layout worked out from your floor plan and load
- Shelf counts and levels set to what you store
- Heights built from back panel modules to suit your space
- 30 × 90 mm uprights where the load or height asks for it
- Pre-galvanized uprights as an option on pallet racking
- Hot dip galvanized finishes reviewed as an OEM option
- Any RAL color on request
Full bespoke and OEM detail is on our OEM & custom page.
Where it's used
Shelving and racking go into warehouses, distribution centers, and stockrooms, along with supermarkets, retail stores, and hardware shops. The system changes with the job, so a distribution center takes pallet racking on anchored frames while a store takes gondola and wall units on a modular line. Tell us the space and what sits on the shelves, and we supply the configuration that fits.
Ordering
- No fixed minimum order. Orders under €2,000 carry a €150 customs handling fee.
- Payment: 30% advance and 70% before loading. A confirmed, irrevocable L/C at sight is also accepted.
- Timing depends on the system and quantity, confirmed with your layout and quote.
- Packing and container loading are confirmed with each quotation.
- Samples are available, with the sample cost credited back on your confirmed order.
- Backed by a 2-year warranty against manufacturing faults.
- Incoterms: EXW, FCA, CPT, CIP, FOB, CFR, CIF, and DAP. See Export & logistics for details.
Frequently asked questions
Who works out the layout?
We do. Send your floor plan, ceiling height, and what you store, and we come back with a layout proposal and a quote.
Can the shelf levels be adjusted later?
Yes. Shelf levels on medium duty and supermarket systems adjust on the uprights as your products change.
How does the racking arrive?
Knock down on pallets, packed for sea or road. Uprights can be supplied flat with one assembled sample as a reference, or fully assembled on request.
Is a galvanized finish available?
Pre-galvanized uprights are an option on pallet racking, and hot dip galvanized finishes can be reviewed as an OEM request.
Do you help with installation?
Assembly guides come with the order, and for larger projects we can review remote or on site guidance with you.
Get a quote for shelving and racking
Send us the floor plan, what you store, and the destination, and we'll prepare a quote, usually within 24 hours.
