Economic Metal Bunk Bed
A two-tier metal bunk built from box section, with no wood headboard detailing. The main uprights are 40 × 40 mm box section, powder coated, and the ladder slots into the side rails rather than being welded on.
It works two ways. Stack it as a bunk, or take it apart into two single beds, which makes it a practical fit for dormitories and camps where the room layout changes.
Key features
- Two-tier metal bunk in box section, with no wood headboard detailing
- Converts two ways, stacked as a bunk or split into two single beds
- Slot-in ladder, 20 × 20 mm with 3 steps, fixed once assembled and removable if the upper bed comes off
- Guardrail on the upper tier, 350 mm high
- Each tier stands 850 mm with an 80 mm spacer between them, giving the 1780 mm overall height
- 870 mm of clearance between the two beds
- Frame built from steel box section, with the profile sizes shown below
- Bed base in steel profile, with an MDF panel or wire mesh option
- Electrostatic powder coat, 80 to 120 microns, black standard with any RAL on request
- Ladder on the right side as standard, left on request
- Designed and produced in Turkey
Economic Metal Bunk Bed
Specifications
| Overall size (W × L × H) | 980 × 2080 × 1780 mm (including the spacer feet) |
|---|---|
| Configuration | Two tiers as a bunk, or two single beds |
| Mattress sizes (cm) | 90 × 200 standard, with 90 × 190, 80 × 190, and 80 × 200 |
| Clearance between beds | 870 mm |
| Guardrail height | 350 mm |
| Ladder | 20 × 20 × 1.0 mm, 3 steps, slot-in and removable. Right side standard, left on request |
| Uprights | 40 × 40 × 1.2 mm box section |
| Side rails | 60 × 30 × 1.5 mm |
| Base supports | 20 × 20 × 1.2 mm cross members, 10 per bed and 20 per bunk, more or fewer on request |
| Guardrail and headboard infill | 20 × 20 × 1.0 mm |
| Frame material | Welded steel box section, mill certified to EN 10204. Uprights 40 × 40 × 1.2 mm and side rails 60 × 30 × 1.5 mm in EN 10219 grade S235JRH. Ladder, guardrail, and infill 20 × 20 mm, 1.0 to 1.2 mm wall thickness, in EN 10305-3 grade E190. Mill test certificates available per batch on request |
| Bed base | Steel profile, with an optional MDF panel or wire mesh |
| Coating | Electrostatic powder coat, 80–120 µm. Matt and textured finishes use QUALICOAT approved coating powder. Adhesion tested to ISO 2409 Gt0, corrosion resistance to ISO 22479, weathering to ISO 16474-2 |
| Colors | Black standard, any RAL on request |
| Packing | One boxed carton per bunk, shipped unassembled with the assembly parts included |
| Unit weight | Net approx. 51.5 kg, gross approx. 53 kg, ±2 kg |
| Origin | Made in Turkey |
Show all specifications
Download technical drawing (PDF)
Dimensions are nominal (±20 mm). Full dimensions are given on the technical drawing.
Made to your specification
We match the build to the project. Black is the standard color, and any RAL is available with the color confirmed at quotation.
Full custom and OEM detail is on our OEM & custom page. Send us the quantity and the room layout, and we will advise on the best configuration.
If you are still choosing between the three, the Standard Metal Bunk Bed page sets them side by side.
Two ways to use
Used as a bunk with the tiers stacked, or separated into two single beds for flexible room layouts.

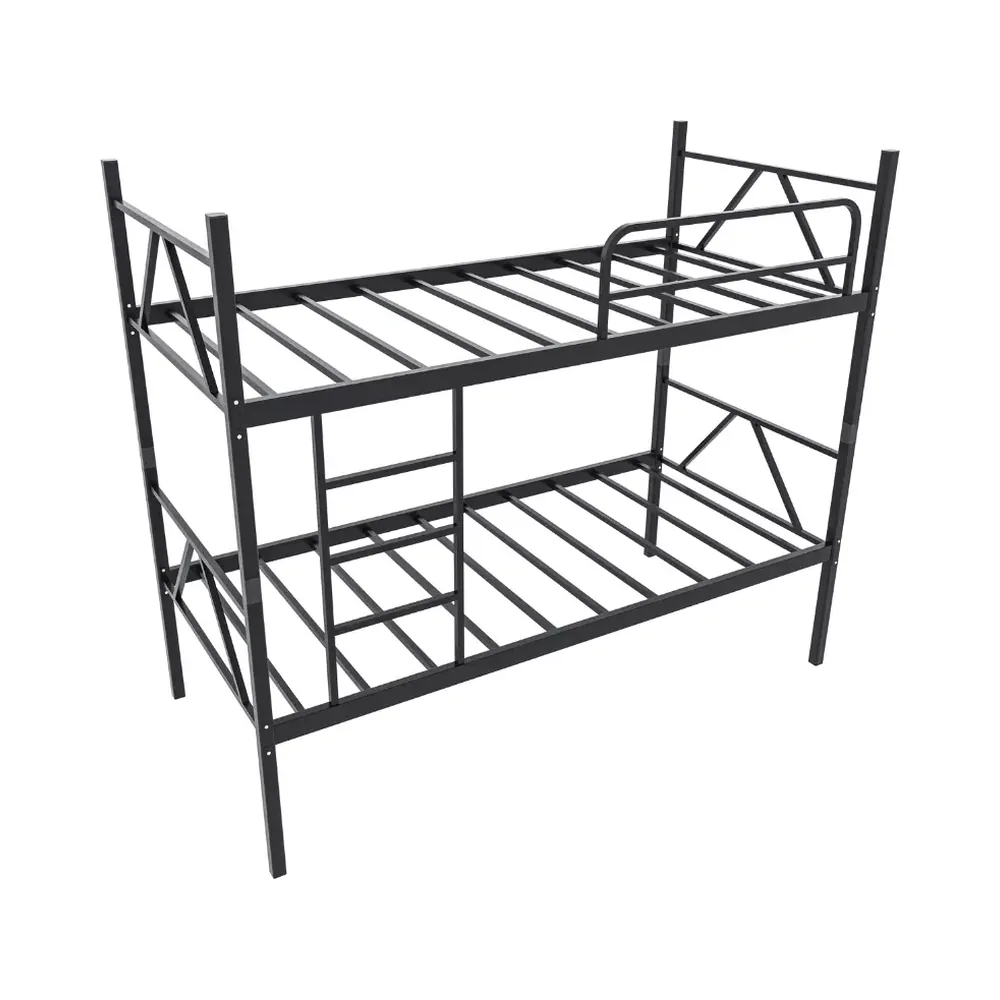

As a bunk

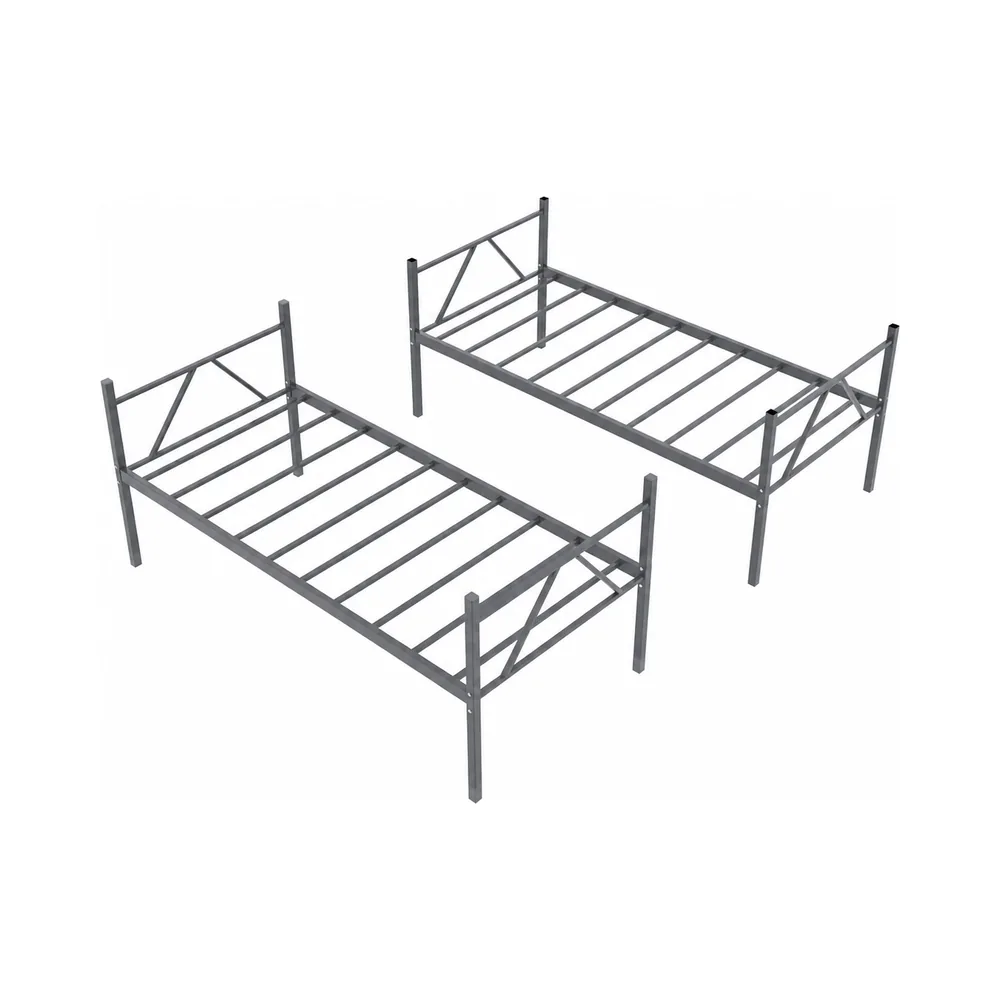

As two single beds
Where it's used
It suits shared sleeping quarters where a fixed number of beds go into a set floor area, from student and worker dormitories to barracks, military camps, and field camps. The two-into-one option lets the same order cover rooms that need bunks and rooms that need single beds.

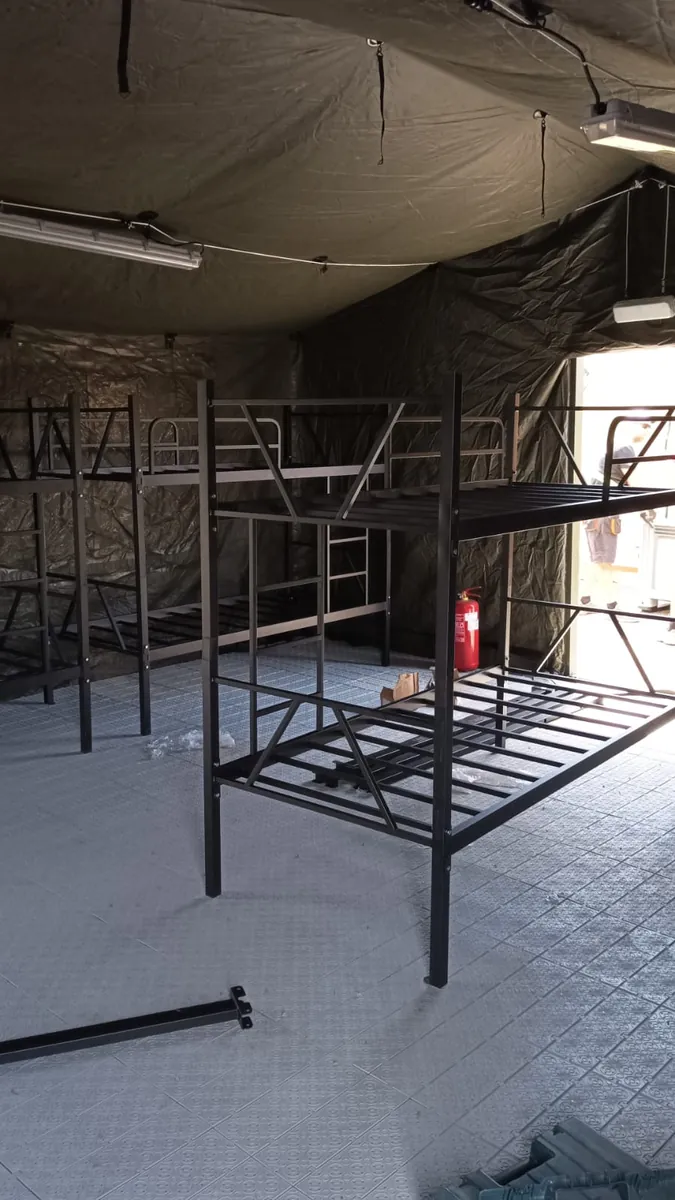

Assembled in a military camp
Loading capacity
- 20′ DC — 115 palletized, up to 130 (15 loose)40′ HC — 230 palletized, up to 250 (20 loose)Truckload — 300 palletized, up to 340 (40 loose)
Standard loading is on pallets, which load and unload faster and stack and separate better in the warehouse. The loose figure is the extra that fits in the leftover space without pallets, when the highest count per load matters. A fully loose load is also possible, but it adds only a little over the palletized and loose figure, since the gain is mainly the pallet height.

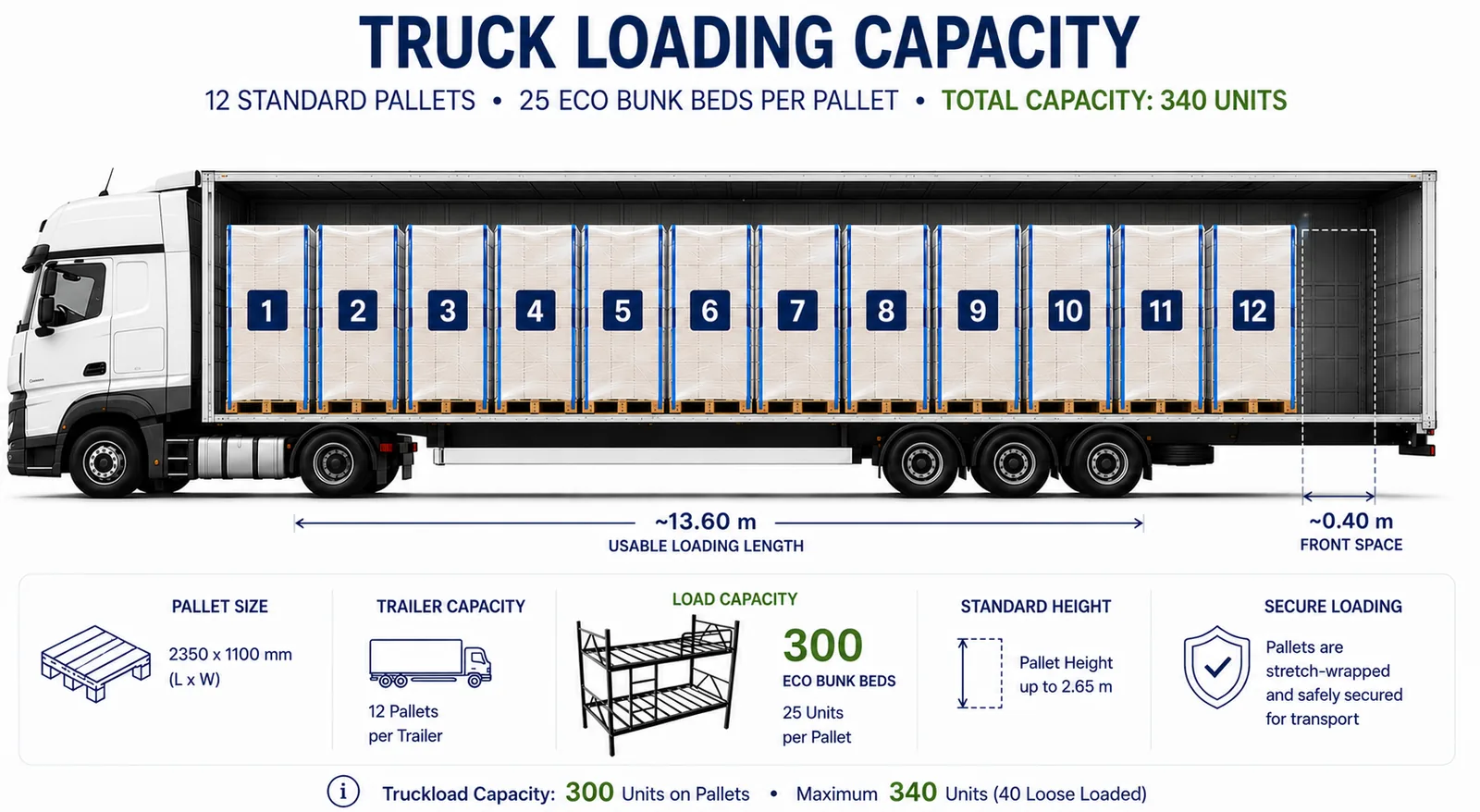

The diagram below shows how the economic bunk beds load into a truck.

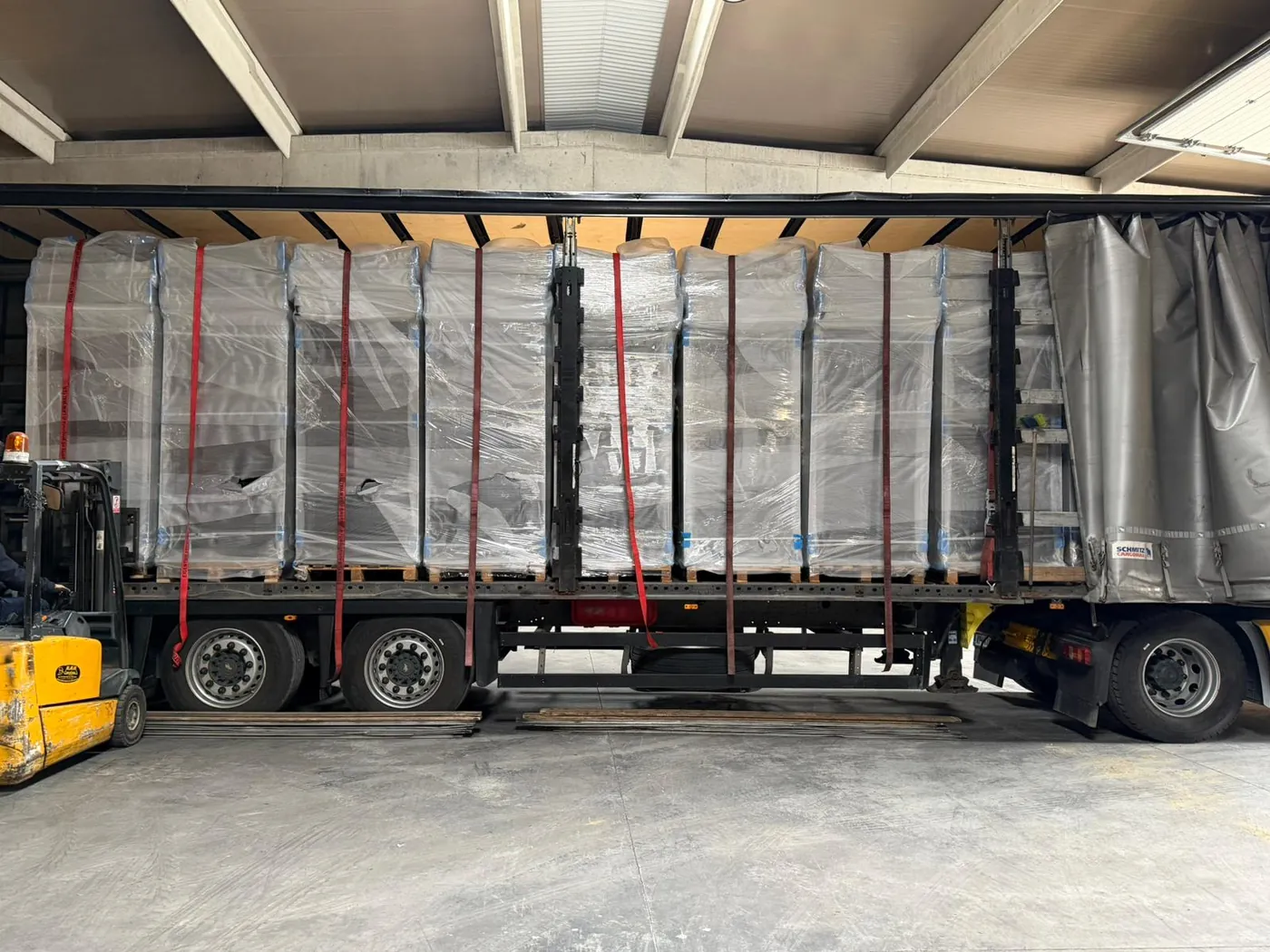

Palletized, wrapped, and secured for shipment
Ordering
- No fixed minimum order. Orders under €2,000 carry a €150 customs handling fee.
- Payment: 30% advance and 70% before loading. A confirmed, irrevocable L/C at sight is also accepted.
- Lead time is typically 15–20 days for a full truckload, from order confirmation.
- Samples are available, with the sample cost credited back on your confirmed order.
- Backed by a 2-year warranty against manufacturing faults.
- Incoterms: EXW, FCA, CPT, CIP, FOB, CFR, CIF, and DAP. See Export & logistics for details.
Frequently asked questions
Can this be used as two single beds?
Yes. It stacks as a two tier bunk or separates into two single beds, which suits dormitory and camp projects where the layout changes.
How does the ladder attach?
The ladder slots into CNC cut holes in the 60 × 30 mm side rails, top and bottom, so it stays fixed once the bunk is assembled. It can be taken off if the upper bed is removed, and it is fitted on the right side as standard with left available on request.
What is the clearance between the two beds?
The gap between the lower and upper bed is 870 mm, and the guardrail on the upper tier is 350 mm high. The clearance can be changed to suit your project.
How much weight does the bunk take?
We do not publish a load figure, since we have not had the bunk load tested. What we can tell you is how it is built. The bed base sits on 10 cross members per bed and 20 per bunk, where 6 is the usual count, so the load spreads across the frame rather than a few points. The bunk is built for adult use in dormitories, worker housing, and camps.
What mattress sizes fit?
The standard is 90 × 200 cm, with 90 × 190, 80 × 190, and 80 × 200 also available. Tell us the size you need with your order.
How does this differ from the standard bunk bed?
This model has a box section body with no wood headboard detailing, and a slot in removable ladder rather than the welded U shape ladder on the standard model. Both are two tier metal bunks made in Turkey.
Can the bunk be fixed to the floor?
Yes, floor-fixing feet with anchor holes are available as an option, so the bunk can be dowelled to the floor for extra stability in high-use rooms.
Are mattresses included?
Mattresses can be supplied separately, with the bunk or later.
Can the economic bunk ship knocked down?
The economic bunk is welded and ships unassembled, then bolts together on site. The base support profiles can be supplied loose rather than welded if needed, though this loads without pallets and adds assembly time, so for a fully knock-down build our demountable model is the better fit. The headboards stay welded on this model.
Get a quote for the Economic Metal Bunk Bed
Send us your quantity, mattress size, and color, and we'll prepare a quote, usually within 24 hours.
