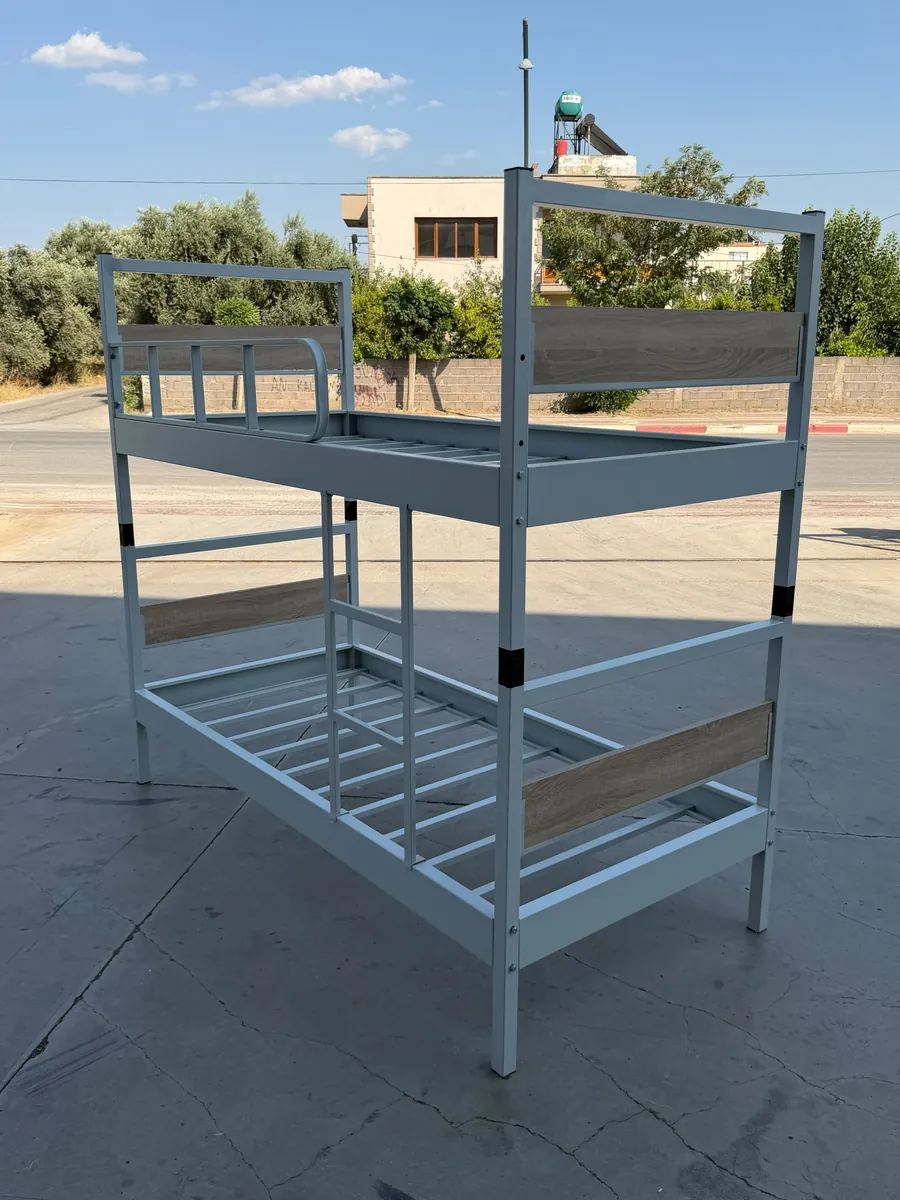

Standard Metal Bunk Bed
A two-tier metal bunk built for heavier use, with a chipboard headboard panel and C-channel side rails. The uprights are 40 × 40 × 1.5 mm, and the ladder and upper guardrail move to either side after delivery.
It works two ways. Stack it as a bunk, or split it into two single beds, which makes it a practical fit for dormitories and camps where the room layout changes.
Which of the three bunks you are looking at
We make three metal bunks and they are separate products, not versions of one another. This one is the heavier build, 40 × 40 × 1.5 mm uprights with C-channel side rails and a chipboard headboard panel, and it stacks as a bunk or splits into two single beds.
The Economic Metal Bunk Bed is 40 × 40 mm box section with no wood headboard detailing, and its ladder slots into the side rails rather than being welded on. The Demountable Metal Bunk Bed takes apart completely, down to the ladder, which is why a 20′ container holds 230 of them against 50 of these.
So the question is whether you are buying for the room or for the route. Tell us the quantity and the destination and we will say which one fits.
Key features
- Two-tier metal bunk with a chipboard headboard panel
- Converts two ways, stacked as a bunk or split into two single beds
- Ladder and upper guardrail move to either side after delivery, so the same bunk suits a left wall or a right wall
- Heavier build, 40 × 40 × 1.5 mm uprights and C-channel side rails at 120 × 40 mm
- Each tier stands 900 mm with an 80 mm spacer between them
- Guardrail on the upper tier, 250 mm high and 1320 mm long
- 860 mm of clearance between the two beds
- Bed base in steel profile, with an MDF panel or wire mesh option
- Electrostatic powder coat, 80 to 120 microns, RAL 7035 light gray standard with any RAL on request
- Designed and produced in Turkey
Standard Metal Bunk Bed
Specifications
| Overall size (W × L × H) | 980 × 2080 × 1880 mm (including the spacer feet) |
|---|---|
| Configuration | Two tiers as a bunk, or two single beds |
| Mattress sizes (cm) | 90 × 200 standard, with 90 × 190, 80 × 190, and 80 × 200 |
| Clearance between beds | 860 mm |
| Guardrail | 250 mm high, 1320 mm long |
| Ladder | 30 × 15 mm, step pitch 375 mm, removable when the bunk is split |
| Bottom bed from floor | 250 mm |
| Uprights | 40 × 40 × 1.5 mm |
| Side rails | 120 × 40 × 0.9 mm, C-channel |
| Base supports | 30 × 20 × 0.9 mm |
| Guardrail and headboard infill | 30 × 15 × 1.2 mm |
| Headboard | 18 mm melamine-faced chipboard panel, 894 × 58.5 mm |
| Frame material | Welded steel box sections and C-channel profiles, mill certified to EN 10204. Uprights 40 × 40 × 1.5 mm in EN 10219 grade S235JRH. Slat and rail infill in EN 10305-3 grade E190. Section wall thicknesses to specification. Mill test certificates available per batch on request. |
| Bed base | Steel profile, optional MDF panel or wire mesh |
| Coating | Electrostatic powder coat, 80–120 µm. Matt and textured finishes use QUALICOAT approved coating powder. Adhesion tested to ISO 2409 Gt0, corrosion resistance to ISO 22479, weathering to ISO 16474-2 |
| Colors | RAL 7035 light gray standard, any RAL on request |
| Packing | Stretch wrapped per bunk, shipped unassembled |
| Unit weight | Net approx. 58.5 kg, gross approx. 60 kg |
| Origin | Made in Turkey |
Show all specifications
Download technical drawing (PDF)
Dimensions are nominal (±20 mm). Full dimensions are given on the technical drawing.
Made to your specification
We build to the project. RAL 7035 light gray is the standard color, and any RAL is available with the color set at quotation.
Full custom and OEM detail is on our OEM & custom page. Send the quantity and the room layout, and we will advise on the best setup.
Two ways to use
Stack the tiers as a bunk, or separate them into two single beds when the room needs a different layout.

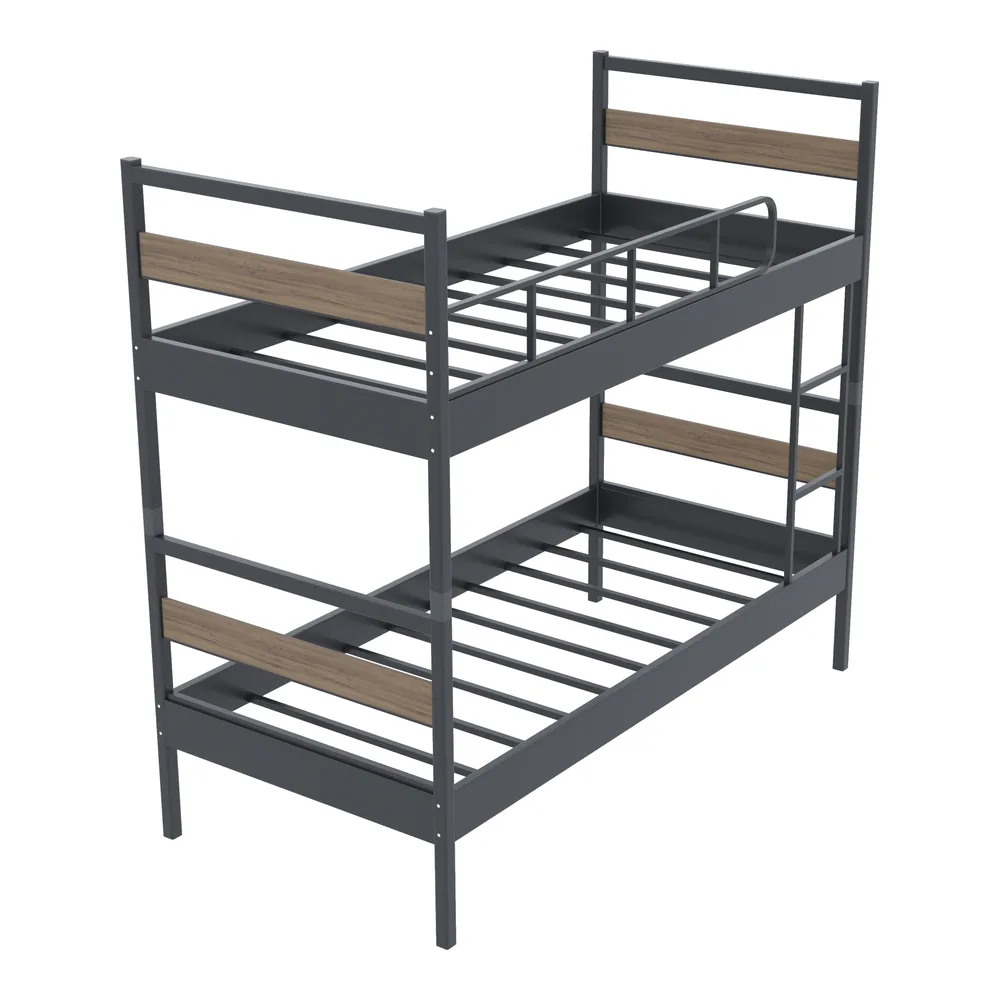

As a bunk

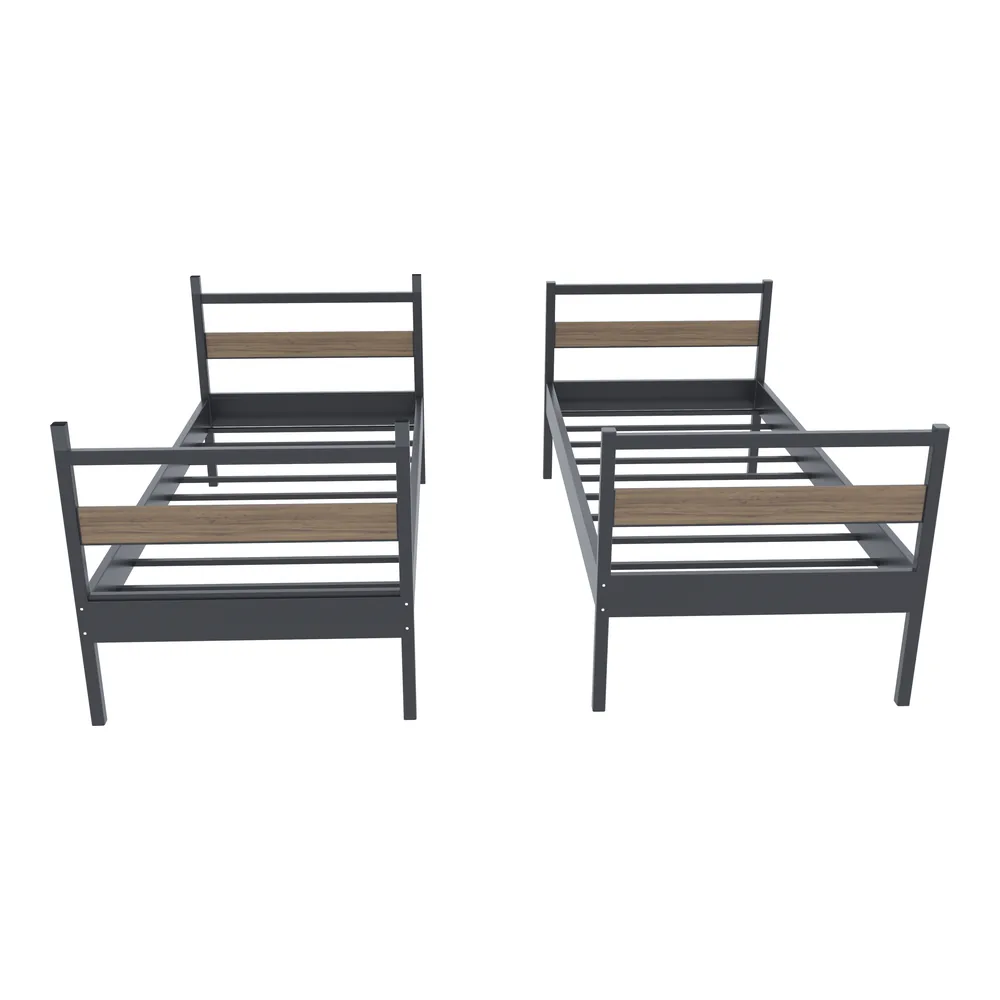

As two single beds
Where it's used
It fits shared sleeping quarters where a set number of beds go into a fixed floor area, from student and worker dormitories to barracks and military camps. Because it splits into singles, one order can cover rooms that need bunks and rooms that need single beds.

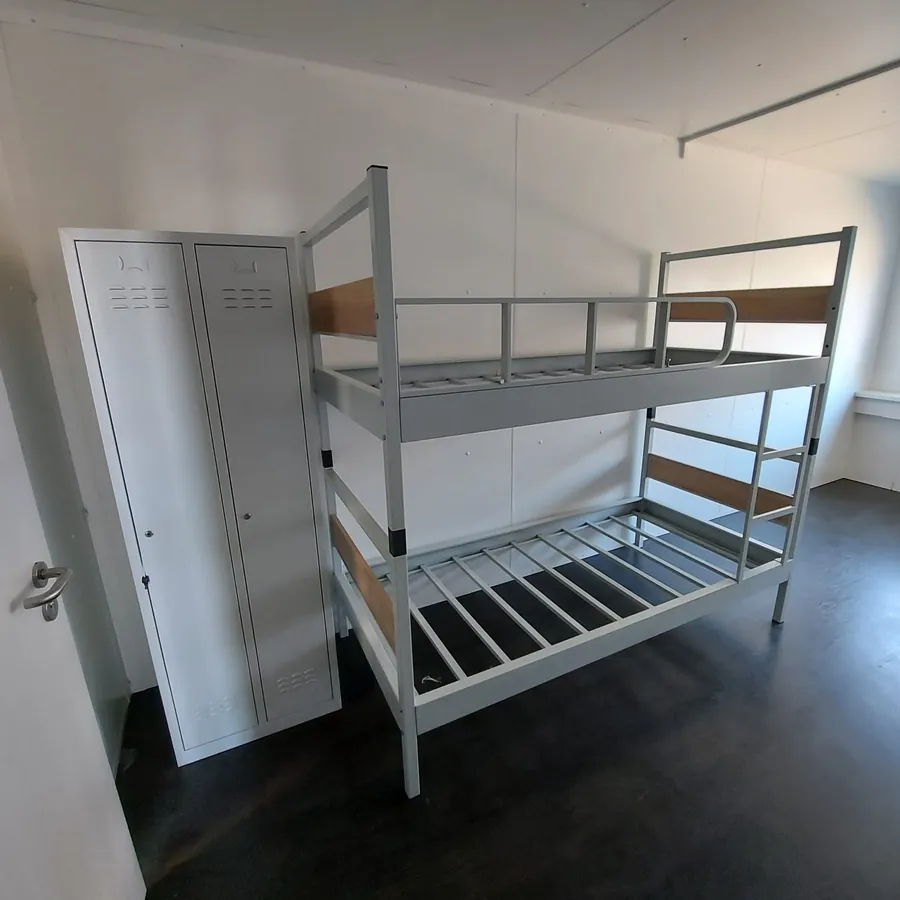

In a student dormitory
Loading capacity
- 20′ DC — 50 palletized, up to 55 (5 loose)40′ HC — 110 palletized, up to 120 (10 loose)Truckload — 143 palletized, up to 153 (10 loose)
We load on pallets as standard, since palletized bunks move faster at both ends and stack cleanly in the warehouse. The loose figure is the extra that fits in the space left over once the pallets are in, for when the count per load is what matters most. A fully loose load gains little beyond that, since most of the saving is the pallet height itself.

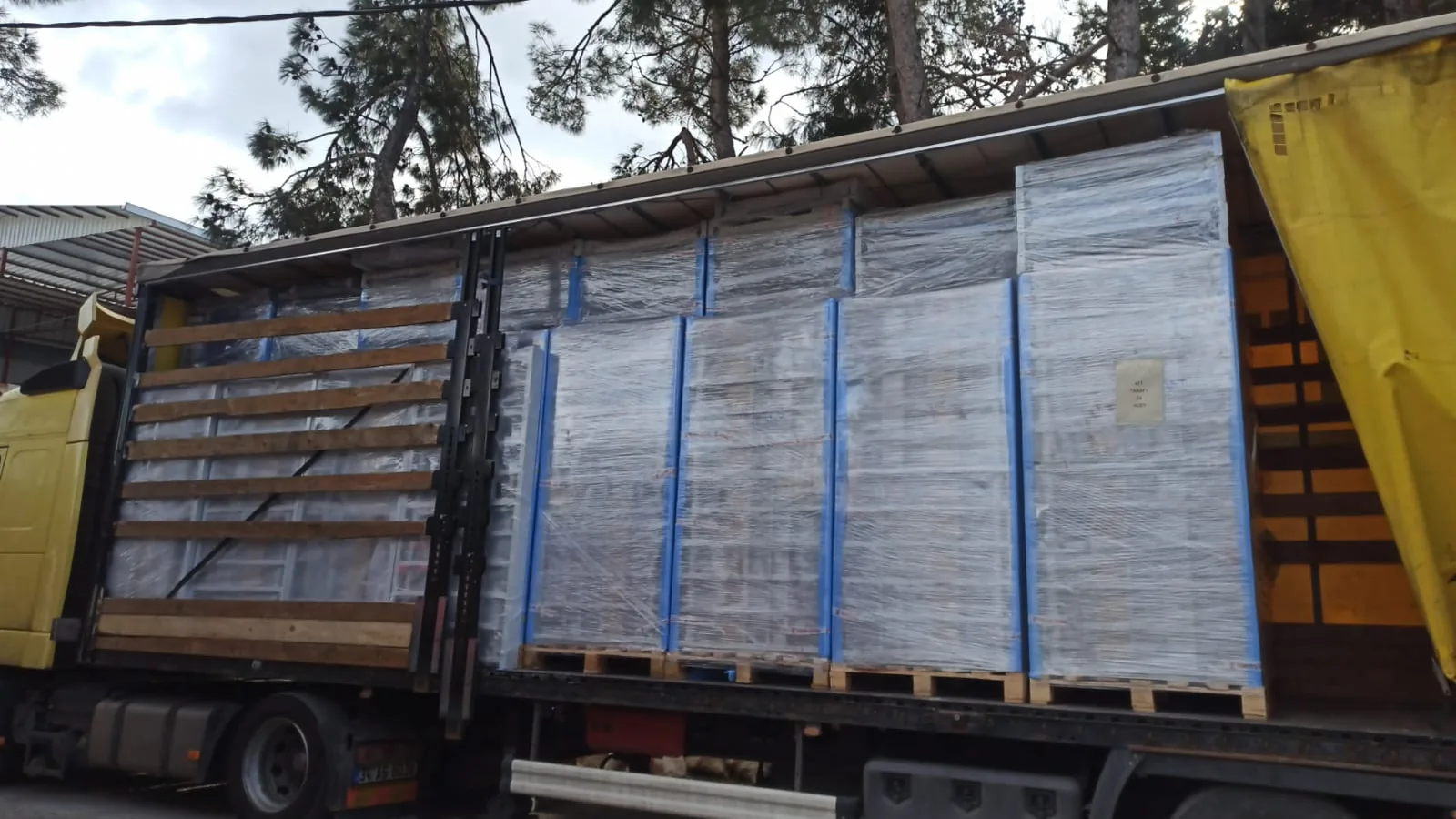

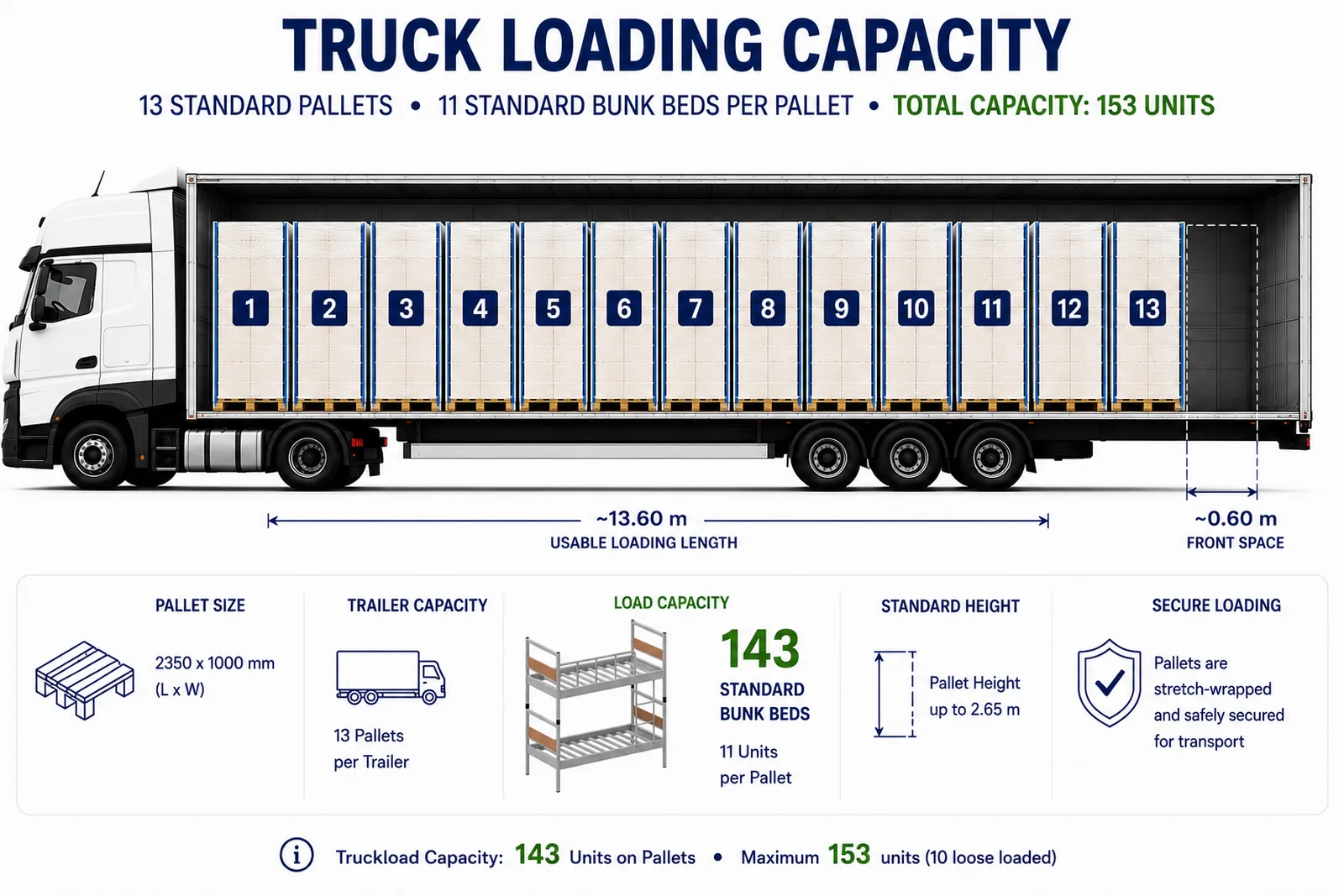

The diagram below shows how the standard bunk beds load into a truck. The photo underneath is a loaded trailer ready to leave.
Palletized, wrapped, and secured for shipment
Ordering
- No fixed minimum order. Orders under €2,000 carry a €150 customs handling fee.
- Payment: 30% advance and 70% before loading. A confirmed, irrevocable L/C at sight is also accepted.
- Lead time is typically 15–20 days for a full truckload, from order confirmation.
- Samples are available, with the sample cost credited back on your confirmed order.
- Backed by a 2-year warranty against manufacturing faults.
- Incoterms: EXW, FCA, CPT, CIP, FOB, CFR, CIF, and DAP. See Export & logistics for details.
Frequently asked questions
Can this be used as two single beds?
Yes. It stacks as a two tier bunk or separates into two single beds, which suits dormitory and camp projects where the layout changes.
Which side is the ladder on?
The ladder and the upper guardrail move to either side after delivery, so the same bunk works against a left wall or a right wall. This helps when a room has bunks on both walls and the ladders need to line up. On the economic model the side is set when the order is placed.
What is the clearance between the two beds?
The gap between the lower and upper bed is 860 mm, and the guardrail on the upper tier is 250 mm high and 1320 mm long. The clearance can be changed to suit your project.
How much weight does the bunk take?
We do not publish a load figure, since we have not had the bunk load tested. What we can tell you is how it is built. The bed base sits on 30 × 20 × 0.9 mm steel cross members, so the load spreads across the frame rather than a few points, and the uprights are 40 × 40 × 1.5 mm. The bunk is built for adult use in dormitories, worker housing, and camps.
What mattress sizes fit?
The standard is 90 × 200 cm, with 90 × 190, 80 × 190, and 80 × 200 also available. Tell us the size you need with your order.
How does this differ from the economic bunk bed?
The standard is the heavier build. It uses 40 × 40 × 1.5 mm uprights, C-channel side rails at 120 × 40 mm, and a chipboard headboard panel, and the ladder and guardrail move to either side after delivery. The economic model is lighter box section with the ladder side fixed at order time.
Can the bunk be fixed to the floor?
Yes, floor-fixing feet with anchor holes are available as an option, so the bunk can be dowelled to the floor for extra stability in high-use rooms.
Are mattresses included?
Mattresses can be supplied separately, with the bunk or later.
How does the standard bunk ship?
The standard bunk is welded and ships unassembled, stretch wrapped per bunk, then bolts together on site. The headboards stay welded on this model.
Get a quote for the Standard Metal Bunk Bed
Send us your quantity, mattress size, and color, and we'll prepare a quote, usually within 24 hours.
