Metal archive cabinets
Filing Drawer Cabinet

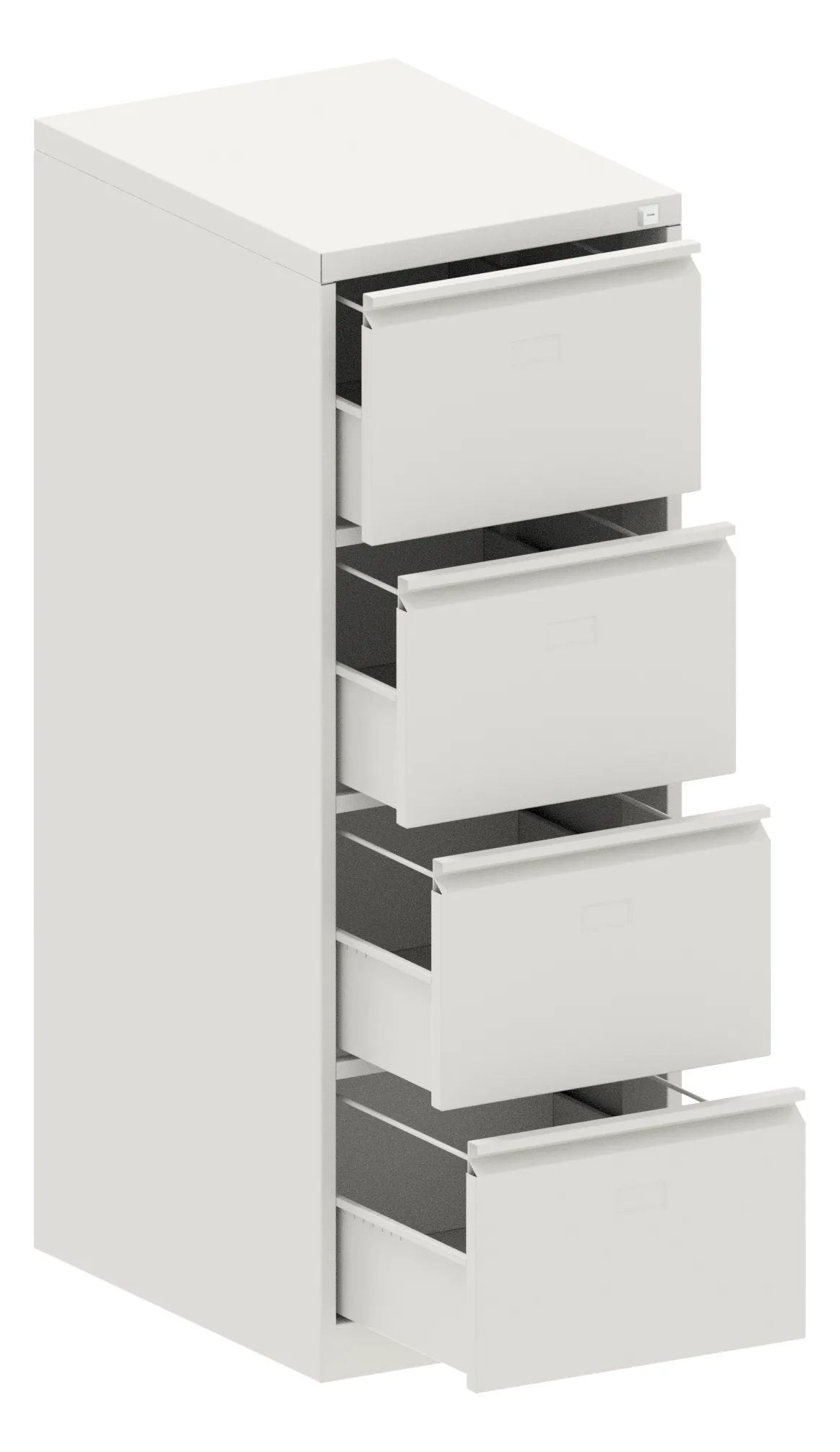

A 465 × 620 mm body in two, three, four, and five drawer builds, all standard. Drawers run on telescopic slides and one key locks every drawer together. Made in Turkey in cold-rolled DC01 steel for A4 and foolscap hanging files.
One key locks every drawer
This is the question a filing cabinet buyer asks first. There is one central lock, not a lock per drawer, so a single turn secures the whole cabinet and a single key opens it. Nobody has to work out which key belongs to which drawer, and nobody leaves one drawer open because they were carrying the wrong key.
It matters most where a cabinet holds personnel or accounts files and the room is shared. One key also means one key to control, which is what a records policy is usually written around.

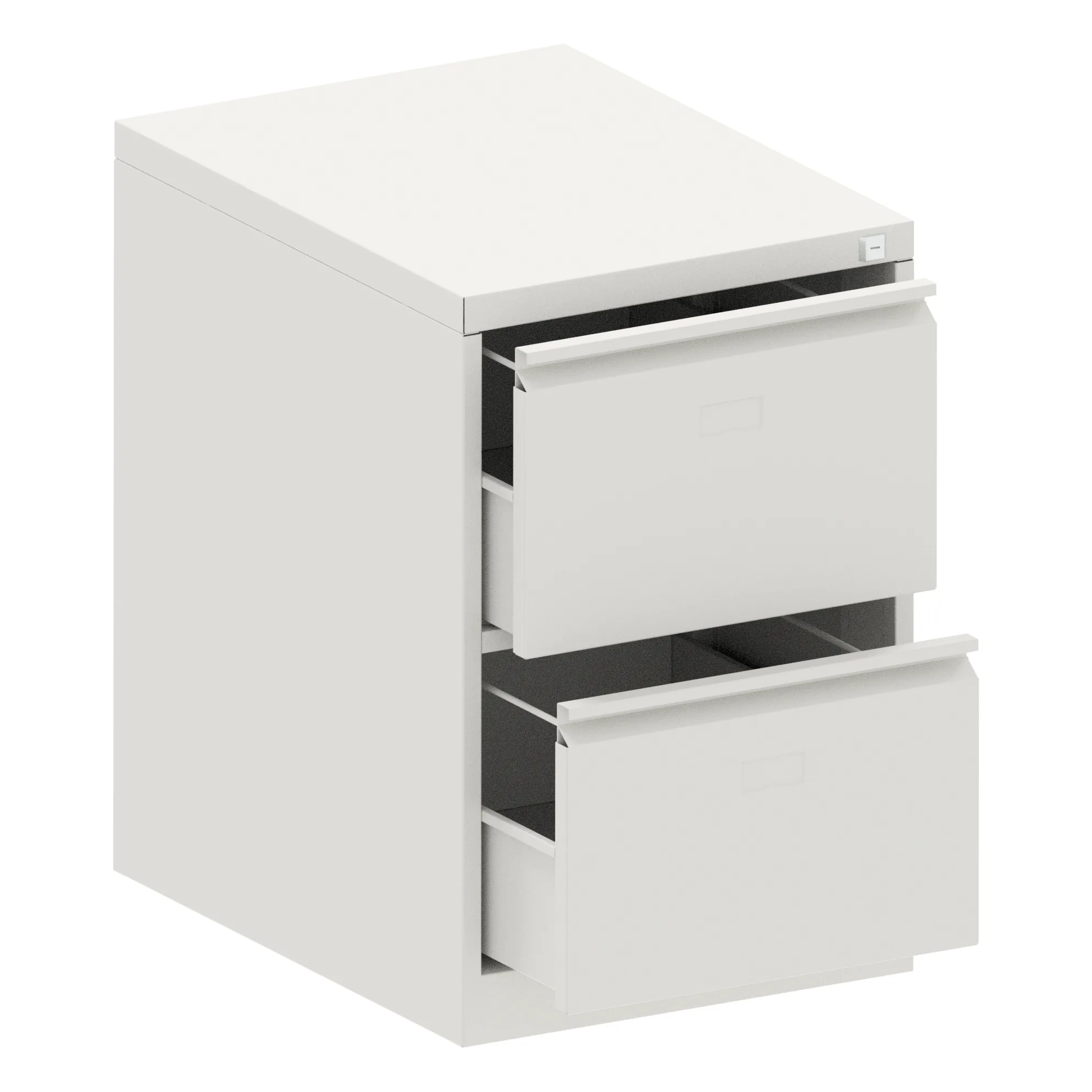

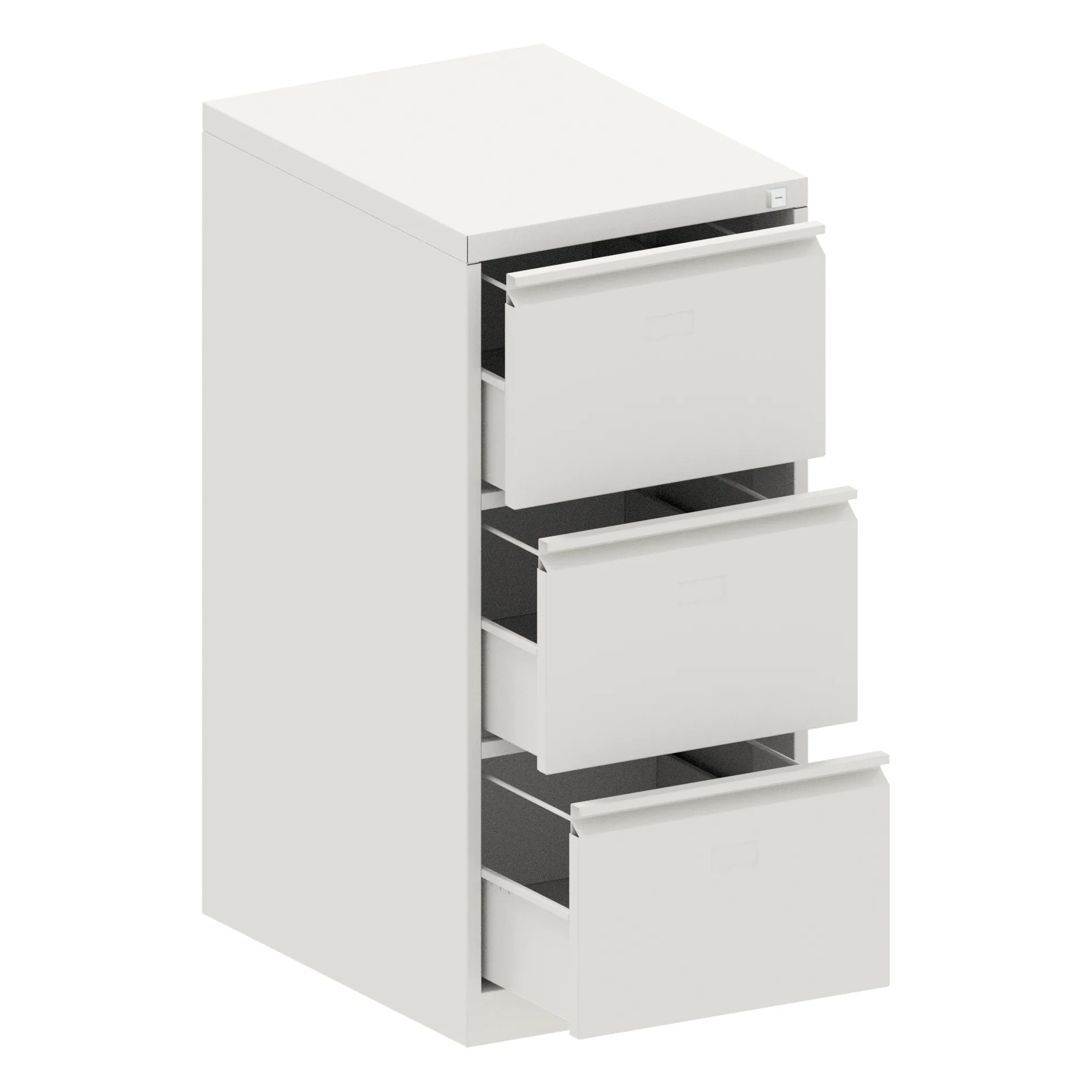

Four drawer counts, one body
The 465 × 620 mm footprint never changes. Only the height does, so a row of two drawer units under a counter and a five drawer unit against the wall behind it share the same depth and stand in line.
| Drawers | Height |
|---|---|
| 2 drawers | 710 mm |
| 3 drawers | 1020 mm |
| 4 drawers | 1330 mm |
| 5 drawers | 1640 mm |
Click to change the drawing
Fixing it to the wall

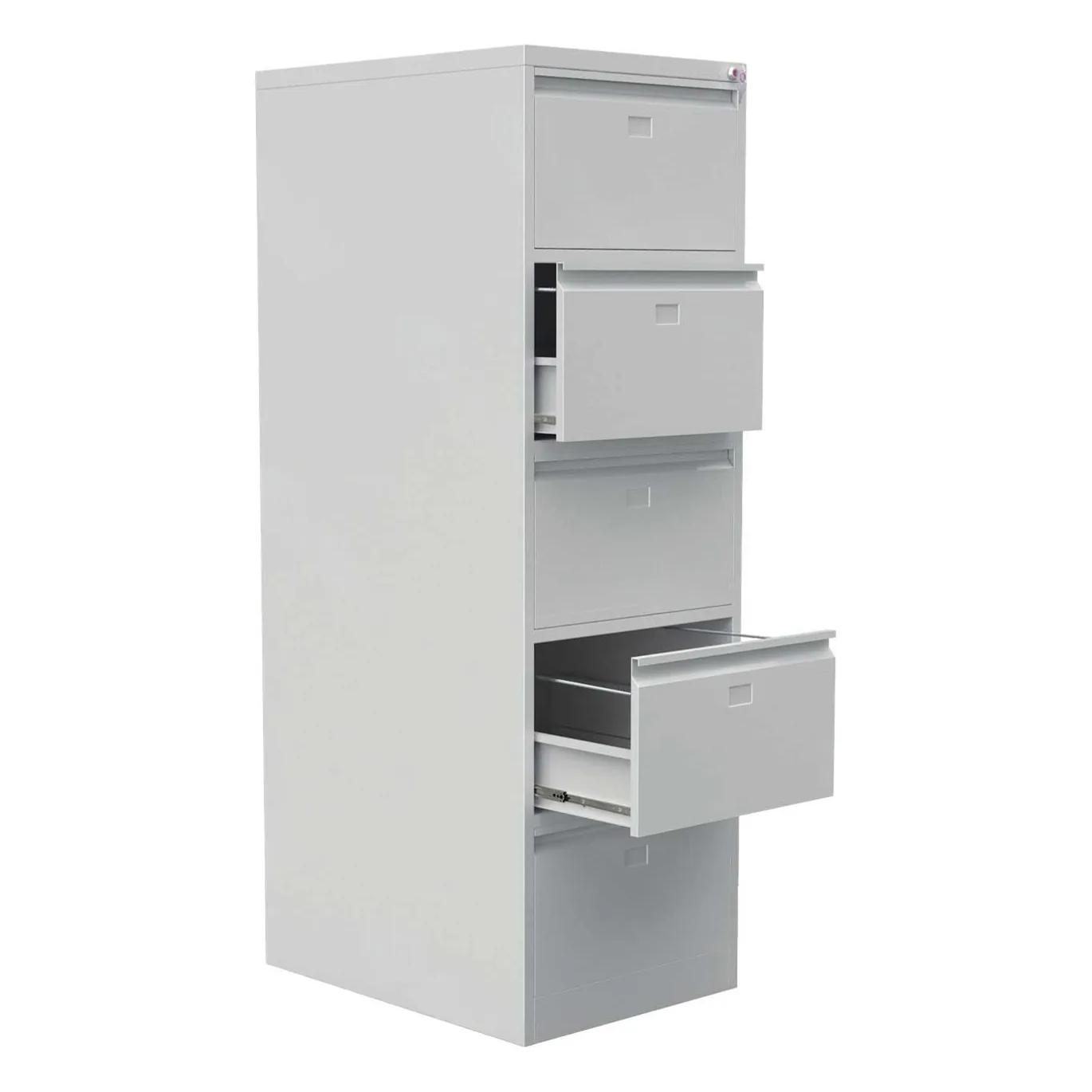

A wall bracket can be made for this cabinet, so it is bolted back to the wall and stays put whatever is open in front of it. On a five drawer unit at 1640 mm, with the upper drawers loaded, that bracket is what we would specify rather than leaving the cabinet freestanding.
Tell us at the order stage whether the cabinets are going against a wall or standing in the open, and we include the brackets with the quantity that needs them.
Specifications
| Body width and depth | 465 mm wide, 620 mm deep |
|---|---|
| Drawer counts | 2, 3, 4, and 5, all standard |
| Heights | 710, 1020, 1330, and 1640 mm |
| Drawer height | 310 mm |
| Steel | Cold-rolled DC01, 0.70 mm, 0.50, 0.60, or 0.90 mm on request where the size and the use allow it |
| Drawer slides | Telescopic |
| Lock | Central locking, one key secures every drawer |
| Filing | A4 and foolscap hanging files |
| Wall fixing | A wall bracket can be made so the cabinet is secured to a wall |
| Colors | RAL 7035 light gray standard, any RAL on request |
| Packing | Ships assembled and stretch wrapped |
| Origin | Made in Turkey |
Download technical datasheet (PDF)
Our quality management is certified to ISO 9001:2015, with a scope that covers the manufacture and sale of steel and wooden furniture. It is a management-system certificate, not a product approval. Full detail is on Quality & materials.
Built to your specification
The four drawer counts are the standard builds. Body sizes, the color, the wall bracket, and any private-label branding are set with the order. For shelf storage in the same 0.70 mm steel, see the Two-Door Archive Cabinet. It is locked differently, a key turning at three points on the door rather than one central lock.
Full OEM detail is on our OEM & custom page.
Ordering
- No fixed minimum order. Orders under €2,000 carry a €150 customs handling fee.
- Payment: 30% advance and 70% before loading. A confirmed, irrevocable L/C at sight is also accepted.
- Lead time is 15 to 20 days from order confirmation, and we confirm the date with your quotation.
- Packing and container loading are confirmed with each quotation.
- Samples are available, with the sample cost credited back on your confirmed order.
- Backed by a 2-year warranty against manufacturing faults.
- Incoterms: EXW, FCA, CPT, CIP, FOB, CFR, CIF, and DAP. See Export & logistics for details.
Frequently asked questions
Do the drawers lock separately?
No, and that is the point of the design. One key turns a central lock that secures every drawer in the cabinet at once, so a room is left secure with a single turn rather than one key per drawer.
How is the cabinet kept stable when a drawer is out?
A wall bracket can be made for it, so the cabinet is fixed back to the wall. That is what we would specify on the taller builds, where the loaded drawers sit high.
Which drawer counts are standard?
All four. Two, three, four, and five drawer cabinets are standard builds, at 710, 1020, 1330, and 1640 mm high.
What size is the body?
It is 465 mm wide and 620 mm deep on every drawer count. Only the height changes.
What filing does it take?
A4 and foolscap hanging files.
Which colors are available?
RAL 7035 light gray is the standard, and any RAL is available on request.
How long is delivery?
Lead time is 15 to 20 days from order confirmation, and we confirm the date with your quotation.
Can you produce under our own brand?
Yes. Private label is possible, and we discuss the tooling cost and the minimum quantity with you. Your logo can also go on the packaging, reviewed by quantity, and there is no extra charge if you supply your own packaging.
Get a quote for the Filing Drawer Cabinet
Send us the drawer count, the color, and the quantity, and we'll prepare a quote, usually within 24 hours.
