Metal archive cabinets

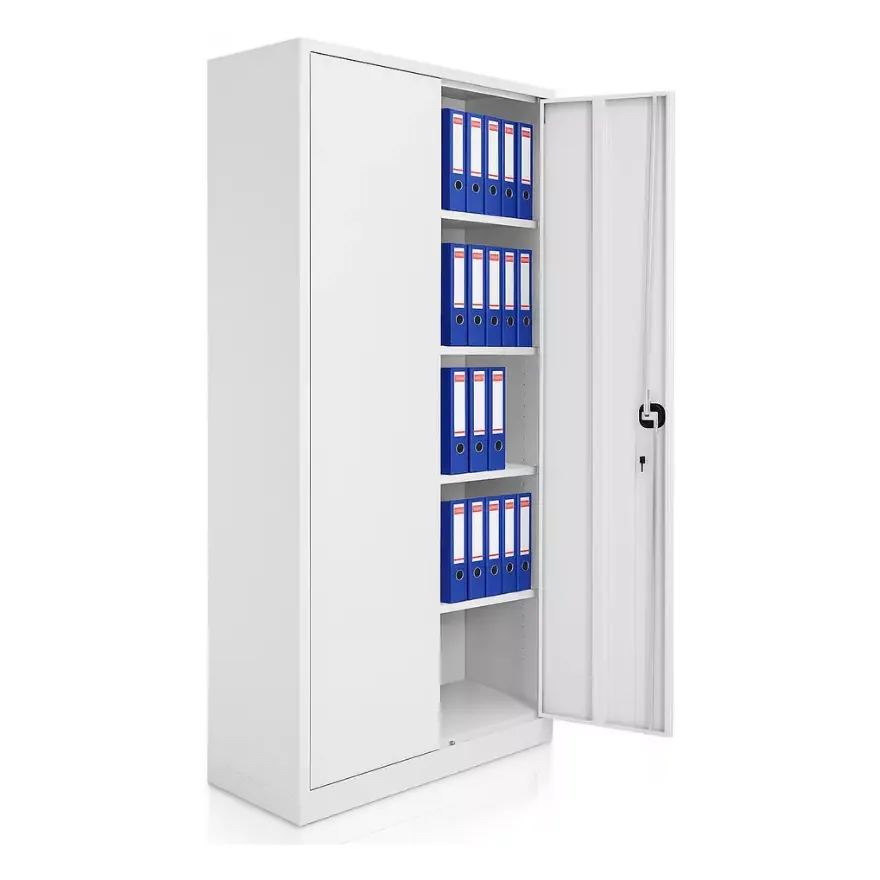

Two-Door Archive Cabinet
One 920 × 410 mm body in five heights, from a low sideboard at 800 mm to a full-height cabinet at 1980 mm. Doors are hinged or sliding, and either can be solid or carry a glass window. Made in Turkey in cold-rolled DC01 steel.
Five heights on one body
The width and depth never change. Mixed heights sit on the same 920 × 410 mm footprint, so a run takes one depth off the room and the fronts line up whatever you put side by side. A low unit fits under a window with a full-height unit next to it. What the height changes is the shelf count.
| Height | Shelves | Compartments |
|---|---|---|
| 800 mm | 1 shelf | 2 compartments |
| 1000 mm | 2 shelves | 3 compartments |
| 1200 mm | 2 shelves | 3 compartments |
| 1300 mm | 3 shelves | 4 compartments |
| 1980 mm | 4 shelves | 5 compartments |
Shelves can be added or removed on request.
Four door configurations

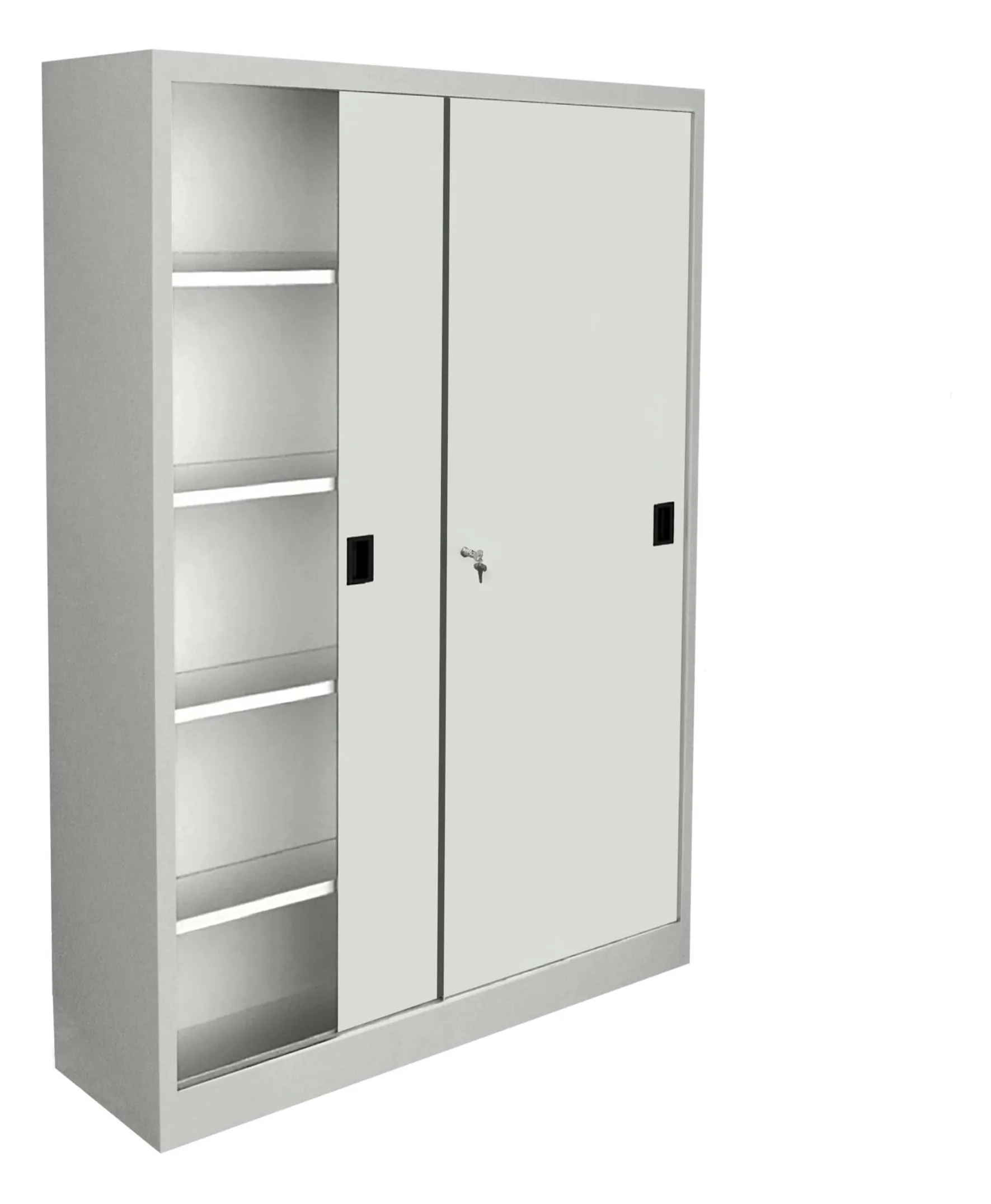

Hinged doors swing out on concealed hinges. Sliding doors run in two channels on a bottom track, so one leaf passes behind the other and the leaves never meet. Each leaf has a recessed pull in its leading edge, and the key lock sits on the overlapping leaf.

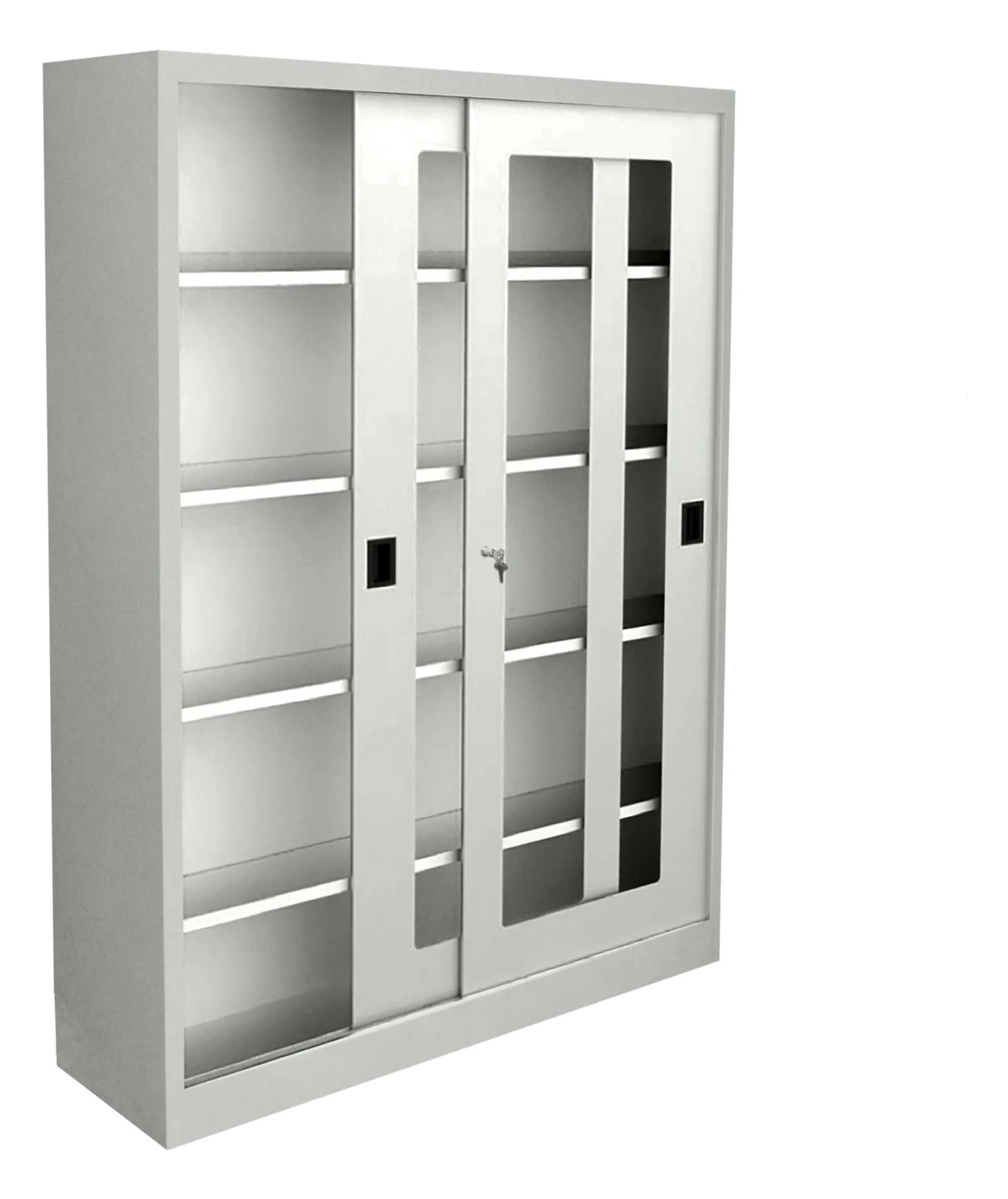

The glazed versions are not glass doors. Each steel door has a rectangular window cut into it and the glass sits flush behind the opening, so the steel of the door is the frame and there is no separate bead around the glass. A tall leaf carries two windows split by a central steel stile, a low leaf carries one. Everything else, the body, the heights, the shelves, and the lock, is the same as the solid version.
Specifications
| Body width and depth | 920 mm wide, 410 mm deep |
|---|---|
| Heights | 800, 1000, 1200, 1300, and 1980 mm |
| Door configurations | Hinged or sliding, each solid or with a glass window |
| Steel | Cold-rolled DC01, 0.70 mm on the body, the doors, and the shelves, 0.50, 0.60, or 0.90 mm on request where the size and the use allow it |
| Shelf load | 30–35 kg standard, up to 60–70 kg reinforced |
| Lock | Key operated, locking at three points, padlock hasp or an electronic lock with PIN, card, or fingerprint on request |
| Colors | RAL 7035 light gray standard, any RAL on request |
| Packing | Ships assembled and stretch wrapped |
| Origin | Made in Turkey |
Download technical datasheet (PDF)
Our quality management is certified to ISO 9001:2015, with a scope that covers the manufacture and sale of steel and wooden furniture. It is a management-system certificate, not a product approval. Full detail is on Quality & materials.
Built to your specification
The five heights are what we build most often, not a limit. Body sizes, shelf counts, and the door configuration are all set to the room, and a run can mix heights on the same 920 mm face. Tell us the wall length and what has to go inside and we work the layout out with you.
Steel at 1.5 mm is outside our production rules for a cabinet body, so for that kind of requirement we can supply medium duty shelving instead.
The lock, the color, and any private-label branding are specified with the order. Full OEM detail is on our OEM & custom page.
Ordering
- No fixed minimum order. Orders under €2,000 carry a €150 customs handling fee.
- Payment: 30% advance and 70% before loading. A confirmed, irrevocable L/C at sight is also accepted.
- Lead time is 10 to 15 days from order confirmation, and we confirm the date with your quotation.
- Packing and container loading are confirmed with each quotation.
- Samples are available, with the sample cost credited back on your confirmed order.
- Backed by a 2-year warranty against manufacturing faults.
- Incoterms: EXW, FCA, CPT, CIP, FOB, CFR, CIF, and DAP. See Export & logistics for details.
Frequently asked questions
Are the glazed doors made of glass?
No. Each door is steel with a rectangular window cut into it, and the glass sits flush behind the opening. The steel of the door is the frame, there is no separate bead around the glass.
What is the difference between the hinged and the sliding version?
Hinged doors swing out on concealed hinges. Sliding doors run in two channels on a bottom track, so one leaf passes behind the other and neither swings into the room. The body, the heights, and the shelves are the same on both.
How many shelves come with each height?
One shelf at 800 mm, two at 1000 and 1200 mm, three at 1300 mm, and four at 1980 mm. Shelves can be added or removed on request.
What does a shelf carry?
Thirty to thirty-five kilos as standard, and sixty to seventy when reinforced. That is the same shelf we use across the steel range.
How does the lock work?
A key operated lock that secures the door at three points, top, bottom, and side. A padlock hasp is available on request, as is an electronic lock with PIN, card, or fingerprint.
Which colors are available?
RAL 7035 light gray is the standard, and any RAL is available on request.
How long is delivery?
Lead time is 10 to 15 days from order confirmation, and we confirm the date with your quotation.
Can you produce under our own brand?
Yes. Private label is possible, and we discuss the tooling cost and the minimum quantity with you. Your logo can also go on the packaging, reviewed by quantity, and there is no extra charge if you supply your own packaging.
Get a quote for the Two-Door Archive Cabinet
Send us the heights, the door configuration, and the quantity, and we'll prepare a quote, usually within 24 hours.
